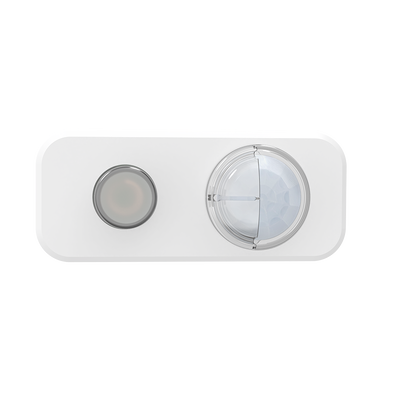

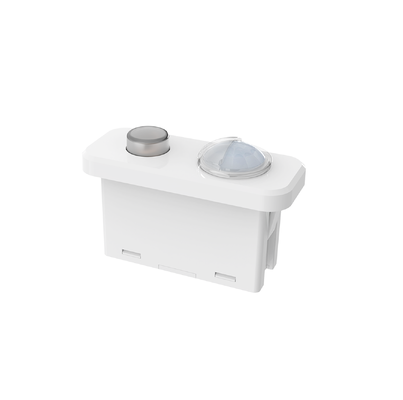

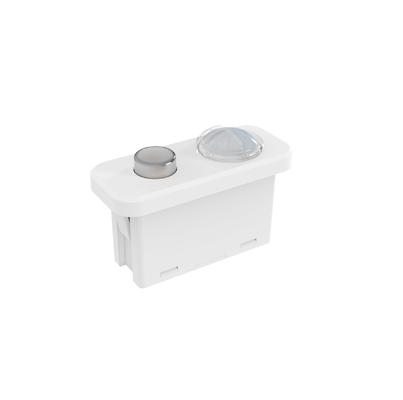

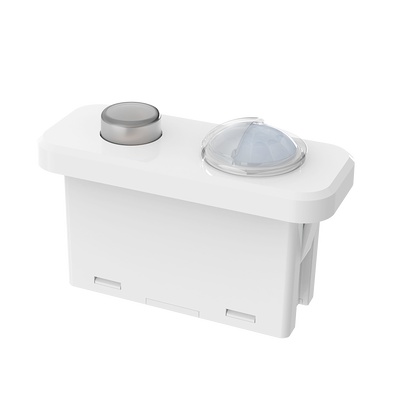

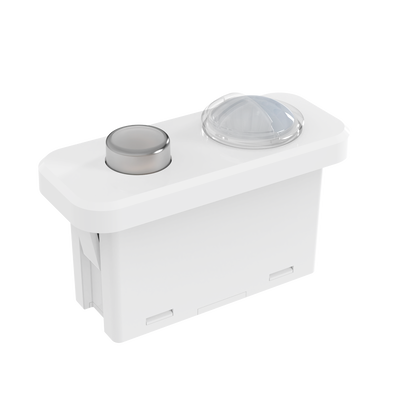

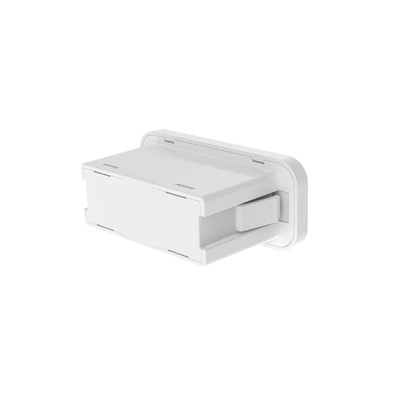

Casambi Dali Bluetooth Network PIR Sensor, Zhaga Book20 Interface, Suitable For Office Use

  • Casambi Dali Bluetooth Network PIR Sensor, Zhaga Book20 Interface, Suitable For Office Use
  • Casambi Dali Bluetooth Network PIR Sensor, Zhaga Book20 Interface, Suitable For Office Use
  • Casambi Dali Bluetooth Network PIR Sensor, Zhaga Book20 Interface, Suitable For Office Use
  • Casambi Dali Bluetooth Network PIR Sensor, Zhaga Book20 Interface, Suitable For Office Use
  • Casambi Dali Bluetooth Network PIR Sensor, Zhaga Book20 Interface, Suitable For Office Use
  • Casambi Dali Bluetooth Network PIR Sensor, Zhaga Book20 Interface, Suitable For Office Use
उत्पत्ति के प्लेस शेनझेन, चीन
ब्रांड नाम Merrytek
प्रमाणन CE
मॉडल संख्या एमडीए182डी आईआर बी1
न्यूनतम आदेश मात्रा 100
मूल्य बातचीत योग्य
पैकेजिंग विवरण क्लैपबोर्ड + कार्टन(K=A)
प्रसव के समय 1, नमूना और छोटे आदेशः आपके भुगतान प्राप्त करने के बाद 5 कार्य दिवसों के भीतर (जब स्टॉक में) । 2, थो
भुगतान शर्तें टी/टी
आपूर्ति की क्षमता 10000/प्रति माह
उत्पाद विवरण
रेटेड वोल्टेज 12 ± 1VDC ऑपरेटिंग करंट 35 ± 5ma
तरंग वोल्टेज <100mvp-p उत्पादन में संकेत डाली डिमिंग
डिटेक्शन मोड पीआईआर का पता लगाना स्थापना ऊँचाई विशिष्ट 3 मी (अधिकतम 4 मी)
आईपी ​​रेटिंग आईपी20 जीवनभर 5 साल की वारंटी @ta (इनडोर)
प्रमुखता देना

Casambi Dali Bluetooth motion sensor

,

Zhaga Book20 PIR sensor

,

office wireless motion detector
एक संदेश छोड़ें
उत्पाद विवरण
Casambi Dali Bluetooth Network PIR Sensor
Zhaga Book20 Interface, Dali2 & D4i Certified Dimmable PIR Motion Sensor with Bluetooth Connectivity
Product Overview
Professional-grade PIR motion sensor with daylight harvesting capabilities, designed for modern office environments with Casambi Bluetooth network integration.
Key Features
  • International standard Zhaga Book20 interface for easy installation
  • Maximum installation height of 4 meters
  • 5-year warranty for reliable performance
  • Ideal for open offices and individual office spaces
  • PIR motion detection with daylight sensor functionality
  • Integrated Casambi Bluetooth module with app control
  • Outputs DALI dimming signals for smart lighting control
Technical Specifications
Input Parameters
Rated Voltage12±1VDC
Operating Current35±5mA
Ripple Voltage<100mVp-p
Output Parameters
Output SignalDALI Dimming
Sensor Parameters
Detection ModePIR Detection
Detection AreaCasambi APP Configurable
Hold TimeCasambi APP Configurable
Daylight SensorCasambi APP Configurable
Daylight PriorityCasambi APP Configurable
Dimming LevelCasambi APP Configurable
Detection RangeCeiling installation 3m high: Radius ≥2.5m
Installation HeightTypical 3m (4m Maximum)
Wireless Parameters
BLE ModuleCasambi Bluetooth
Working Frequency2.402-2.480GHz
Transmitting Power+7dBm (max)
Transmitting DistancePoint to point 25m Maximum
Environmental Specifications
Working Temperature-20℃ to +55℃
Storage Temperature-40℃ to +80℃, Humidity ≤85% (non-condensing)
Certifications & Standards
CertificationsCE, RoHS 2.0, REACH Compliant
IP RatingIP20
Physical Specifications
Wiring2 pin PH2.0 terminal
InstallationZhaga Book20 Standard
Net Weight15.8±3g
Lifetime5 years warranty (indoor use)
Function Capabilities
FunctionConfiguration
ON/OFF FunctionCasambi App Setting
2-step Dimming FunctionCasambi App Setting
3-step Dimming FunctionCasambi App Setting
Daylight HarvestingCasambi App Setting
Daylight PriorityCasambi App Setting
Network FunctionCasambi App Setting
Product Dimensions & Installation
Dimension diagrams and cut-hole specifications:
Casambi Dali Sensor Dimension Diagram Casambi Dali Sensor Cut-hole Specifications
Functional diagram:
Casambi Dali Sensor Function Diagram
Wiring diagram:
Casambi Dali Sensor Wiring Diagram
Installation instructions:
Casambi Dali Sensor Installation Instructions Casambi Dali Sensor Installation Diagram
Initialization & Default Settings
After switching on power, the sensor requires 45-60 seconds warm-up time before beginning operation.
Default configuration: Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disabled, Stand by period: 0s, Stand by DIM Level: 10%
Application Guidelines
Important Installation Notes:
  • Professional electrician installation required - turn off power before installation
  • PIR sensors cannot penetrate materials - ensure clear line of sight to detection area
  • Reduced detection sensitivity in cold conditions with thick clothing
  • Avoid directing sensor toward heat sources (air conditioners, heaters)
  • Indoor use only - outdoor sunlight affects detection accuracy
  • Test with 5 units minimum before mass installation in new environments
  • Requires stable DC power supply with low ripple factor (<100mV)
Detection Performance Considerations:
  • Detection distance varies with height, mounting position, and environmental temperature
  • Reduced sensitivity when ambient temperature approaches human body temperature (36℃-37℃)
  • False triggering possible when ambient/LED tray temperature exceeds 55℃
  • Daylight threshold measurements vary with environment, weather, and time-of-day
Potential False Triggering Scenarios:
  • Small animals entering detection range
  • Direct exposure to far-infrared rays from sunlight, headlights, or incandescent lamps
  • Rapid temperature changes from HVAC systems or humidifiers
Potential Non-Triggering Scenarios:
  • Obstructions like glass or acrylic blocking infrared transmission
  • Minimal movement or extremely high-speed movement of heat sources
Note: Product specifications subject to change due to continuous improvement. Dimming performance may vary with different DALI2 drivers.
