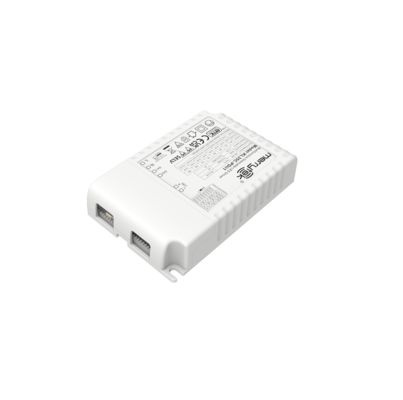

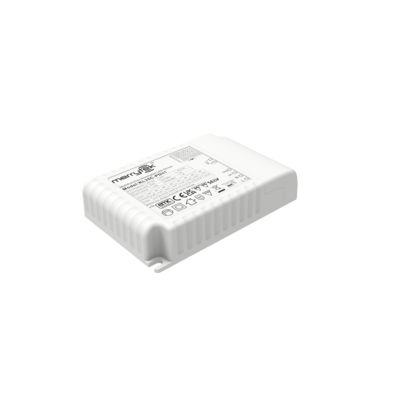

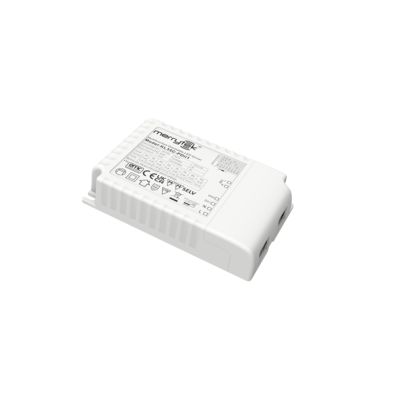

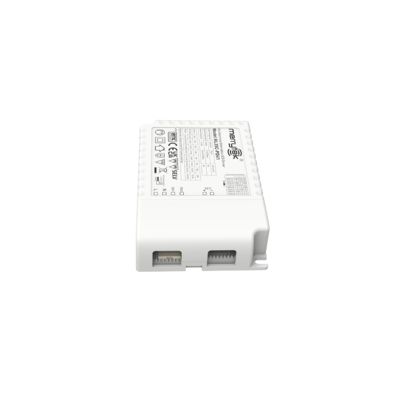

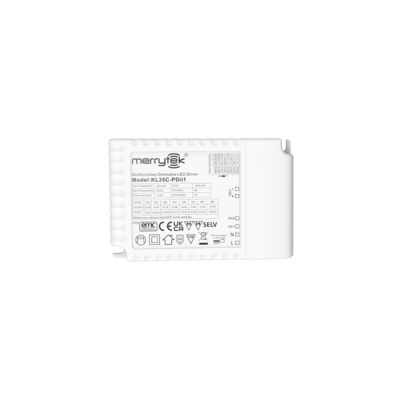

35W CC 500mA to 900mA DALI2 dimmable slim LED current driver with 5-year warranty
Product Description
  • Built-in DALI2 protocol, no flicker in full dimming range
  • Primary Push dimming function with state memory
  • Short circuit / over temperature / over voltage protection
  • Standby power consumption ≤ 0.5W
  • 5-year warranty
Specifications
Input Operating Voltage 198-264VAC 50Hz/60Hz
Rated Input Voltage 220-240VAC 50Hz/60Hz
DC Input Voltage range 200-240VDC
Input Cuttent 0.2A Max.
Input Inrush Current <10A (Half current pulse width 100US) @230VAC
Power Factor ≥ 0.95 (@230Vac,100% load)
Total harmonic distortion Typical: 15% (@230Vac, 100% load)
Stand-by Power ≤0.5W (@230Vac when PUSH or DALI turns off)
Efficiency 87%Max (@230Vac,100% load)
Wiring Method Push terminal, wire cross section:0.75-1.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 25 30 40 50 60 /
type C10 C13 C16 C20 C25 C32
Number 40 55 60 80 105 130
Output Operating mode Constant Current
Load type LED
Flickering / Flickering-Free Flicker value: less than 2% for the whole dimming range
Start-up time <1s (@230Vac)
No-load output voltage 65VDC Max.
Load output voltage range 12-48VDC
Full load output power 35W Max.
Load output current 500~900mA : For details<Current gear setting>
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
Dimming Range Primary PUSH & DALI dimming: 0%-100%
1-10V dimming:2%-100%
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without a self-recovery function(Can be inquired)
Output short circuit protection Yes, without a self-recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102 IEC62386-207 DT6
Safety standard EN61347-1, EN61347-2-13, EN62493, EN60598-1
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 123*79*24mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization

Parallel: 15 units Max.

Series: 25 units Max.
Packaging requirement white box+ Instructions Clapboard Outer Carton(K=A)
Weight 132g
Life 5 years guarantee @Ta full load
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
Dimension:
35W CC 500mA to 900mA DALI2 dimmable slim LED current driver with 5-year warranty 035W CC 500mA to 900mA DALI2 dimmable slim LED current driver with 5-year warranty 1
Wiring Diagram
1) PUSH Dimming wiring diagram
35W CC 500mA to 900mA DALI2 dimmable slim LED current driver with 5-year warranty 235W CC 500mA to 900mA DALI2 dimmable slim LED current driver with 5-year warranty 3
2) DALI wiring diagram
35W CC 500mA to 900mA DALI2 dimmable slim LED current driver with 5-year warranty 4

Current Gear Setting
Current(mA) DIP Pomax(W) Uout(V)
1 2 3
500 - - - 24 12～ 48
550 ON - - 26.4 12～ 48
600 - ON - 28.8 12～ 48
650 - - ON 31.2 12～ 48
700 ON ON - 33.6 12～ 48
750 ON - ON 34.5 12～ 46
800 - ON ON 35 12～ 44
900 ON ON ON 35 12～ 39
ON/OFF & Description of Dimming Operation



A. Short-press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has a dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds.

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.

Important Notes

  • 1) The LED string must be connected to the load before turning on the input power; otherwise, the LED string may be damaged.

    2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
