DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function

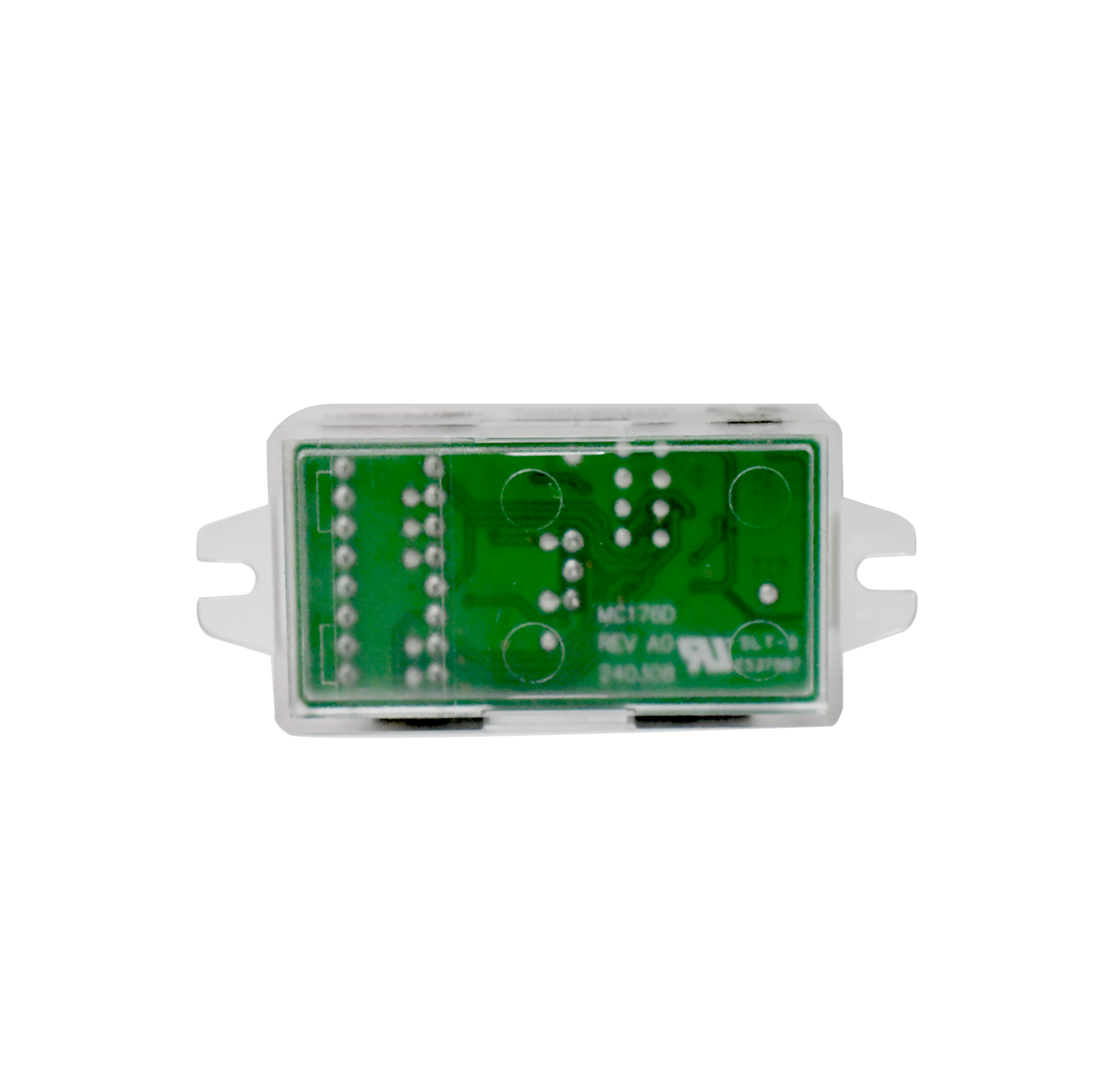

  • DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function

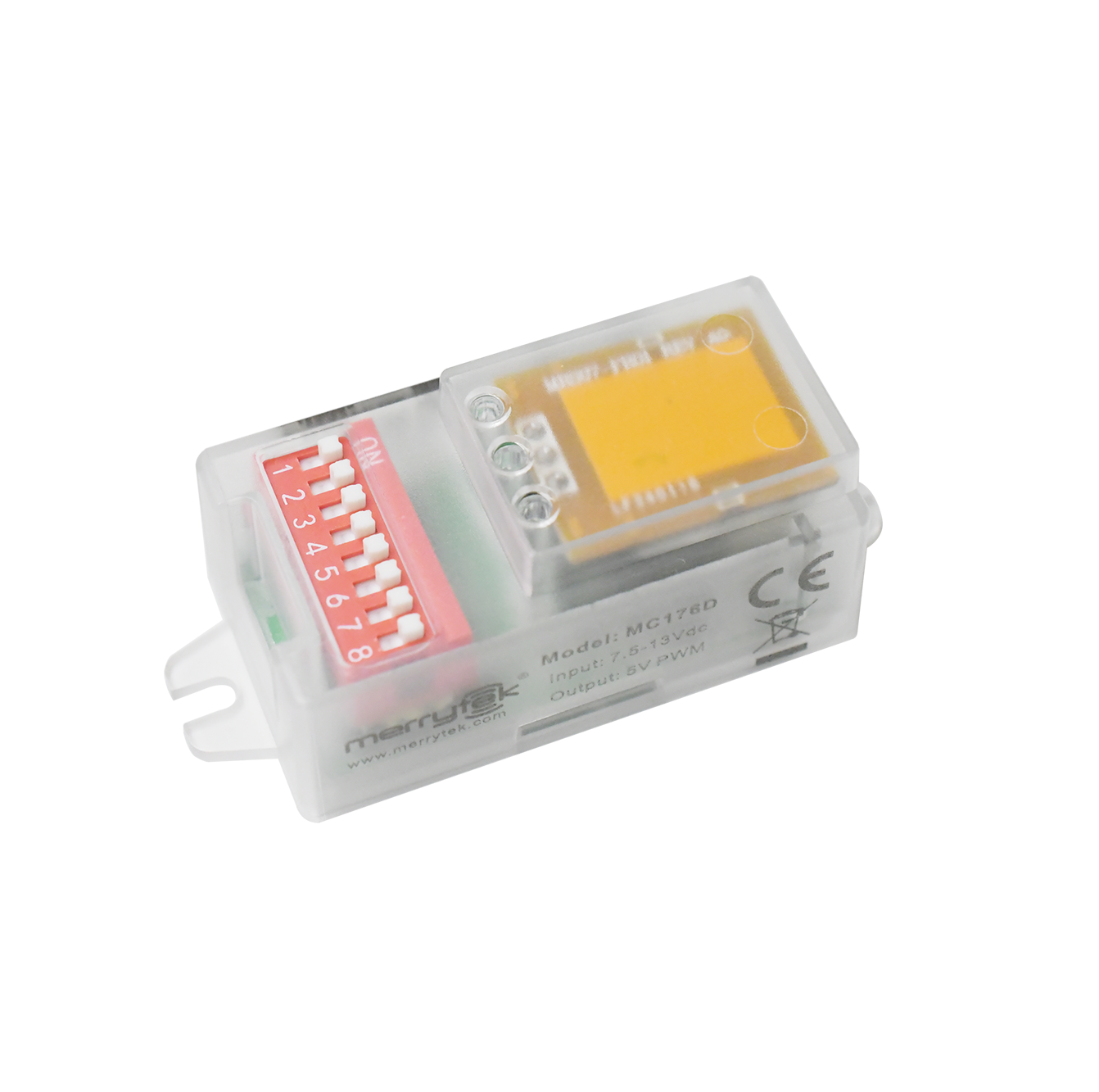

  • DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function
उत्पत्ति के प्लेस चीन
ब्रांड नाम Merrytek
प्रमाणन CE
Model Number MC176D 99
न्यूनतम आदेश मात्रा 100pcs
मूल्य बातचीत योग्य
पैकेजिंग विवरण बुलबुला बैग + विभाजन + बाहरी बॉक्स (K=A)
प्रसव के समय <i>within 5 working days for sample and small order;</i> <b>नमूना और छोटे आदेश के लिए 5 कार्य दिवसों
भुगतान शर्तें टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता 10,000pcs प्रति माह

निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

व्हाट्सएप:0086 18588475571

वीचैट: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
रेटेड वोल्टेज 7.5-13वीडीसी काम कर रहा है 16±2mA
उत्पादन में संकेत 5V PWM डिमिंग सिग्नल कार्य -आवृत्ति 5.8GHz ±75MHz, ISM बैंड
स्थापना ऊंचाई 3 मीटर (अधिकतम 6 मीटर) कार्य तापमान बिल्ट-इन: -25~60℃
जीवनभर 5 साल की वारंटी@टा
प्रमुखता देना

DC dimmable microwave motion sensor

,

microwave motion sensor with remote control

,

daylight priority microwave motion sensor
एक संदेश छोड़ें
उत्पाद विवरण
DC Dimmable Microwave Motion Sensor
Remote Control Available, Daylight Priority Function
Microwave Motion DC Sensor with Daylight Harvesting Function and Remote Control capability.
Product Features
  • 7.5-13VDC Input, Matching DC power or With 12VDC
  • LED driver supply for auxiliary power output
  • 5V PWM dimming signal, 3 steps or 2 steps dimming
  • All motion sensor parameter setting by remote and DIP
  • Low impedance antenna module with light guide column design small size, can reduce the opening of the lamp board
  • Daylight priority function
Technical Parameters
Input
Rated voltage7.5-13VDC
Working current16±2mA
Ripple voltage< 100mVp-p
Output
Output signal5V PWM dimming signal
Daylight Sensor
Daylight threshold5Lux/15Lux/50Lux/Disable
Daylight priorityON | OFF
5Lux15Lux
15Lux50Lux
50Lux100Lux
Dimming level25%
Sensing Parameters
Working frequency5.8GHz ±75MHz, ISM band
Transmit power1mW Max.
Detection Area100%/75%/50%/25%
Hold Time5s/90s/3min/10min
Stand-by period0s/30s/10min/+∞
Detection range (radius)Ceiling installation 3m high: r≥4m@0.3m/s, r≥2.5m@1m/s; Horizontal installation 2m high: r≥8m@0.3m/s, r≥4m@1m/s
Installation height3m (6m Max)
Environmental Specifications
Working temperatureBuilt-in: -25~60℃
Storage temperature-40℃...80℃, humidity ≤85% (non-condensing)
Certifications
CertifiedCE, RED (Pending)
Environmental requirementsComply with RoHS 2.0, Reach requirements
IP RatingIP20
Additional Specifications
Wiring3pin 2.0mm terminal
Installation requirementsbuilt-in installation
Packaging requirementsBubble bag + partition + outer box (K=A)
Net weight13 ±2g
Lifetime5 Years Warranty@Ta
Function Description
MC176D 99Function
ON/OFF functionN/A
Two-step dimming functionStand-by Period be set to "+∞"
Three-step dimming functionStand-by Period be set to "30S/10min"
Daylight harvestingN/A
Daylight priorityStand-by Period be set to "+∞"
Operation Diagrams
DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function 0
On/OFF Function (set Stand-by Period to "0s")
DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function 1
2-step Dimming Function (set Stand-by Period to "+∞")
DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function 2
3-step dimming function (stand-by period be set to "10S/1min/3min/5min/10min/30min")
DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function 3
Daylight Priority
Product Diagrams
DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function 4
Dimension(mm)
DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function 5
Wiring Diagram
DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function 6
Function Diagram
DIP Switch Settings
Detection AreaHold TimeDaylight SensorStand-by period
Ⅰ ON ON 100%ON ON 5SON ON 5Lux
15Lux		ON ON 0S
Ⅱ - ON 75%- ON 90S- ON 15Lux
50Lux		- ON 30S
Ⅲ ON - 50%ON - 3minON - 50Lux
100Lux		ON - 10min
Ⅳ - - 25%- - 10min- - Disable
-		- - +∞
DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function 7
Radiation Diagram
DC Dimmable Microwave Motion Sensor, Remote Control Available, Daylight Priority Function 8
Remote Controller MH10
Initialization
The sensor will turn on the light at 100% brightness for the first time, and turn it off after 10 seconds. During the initialization period, no external motion sensing signal will be detected.
Default Settings
Sensitivity: 100% Hold time: 5s Daylight Sensor: Disable; Stand-by period: 0S; Stand-by Dim Level: 25%
Application Notice
  • The sensor should be installed by a professional electrician. Please cut off the power before installing, wiring, changing the setting of the DIP switch, etc.
  • The detection distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector.
  • When the microwave sensor is installed on the wall, the detection distance will be greatly increased compared with that installed on the ceiling.
  • Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
  • This sensor is only for indoor use, outdoor wind and rain, and surrounding moving objects will cause false triggering.
  • The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters; the distance between the two sensors should be greater than 3 meters.
  • When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, microwaves will be reflected multiple times and cause false triggering.
  • Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
  • Microwaves cannot penetrate metal, avoid installing in closed or semi-closed metal lamps, and there should be no metal or glass blocking the product.
  • Sensor with different PWM / 0-10V driver, low light effect may be different.
  • A DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV; the load current should be greater than 25mA.
  • Product specifications and parameters may be optimized without prior notice.
